Impulse R5

Impulse R5

AIR & WATER

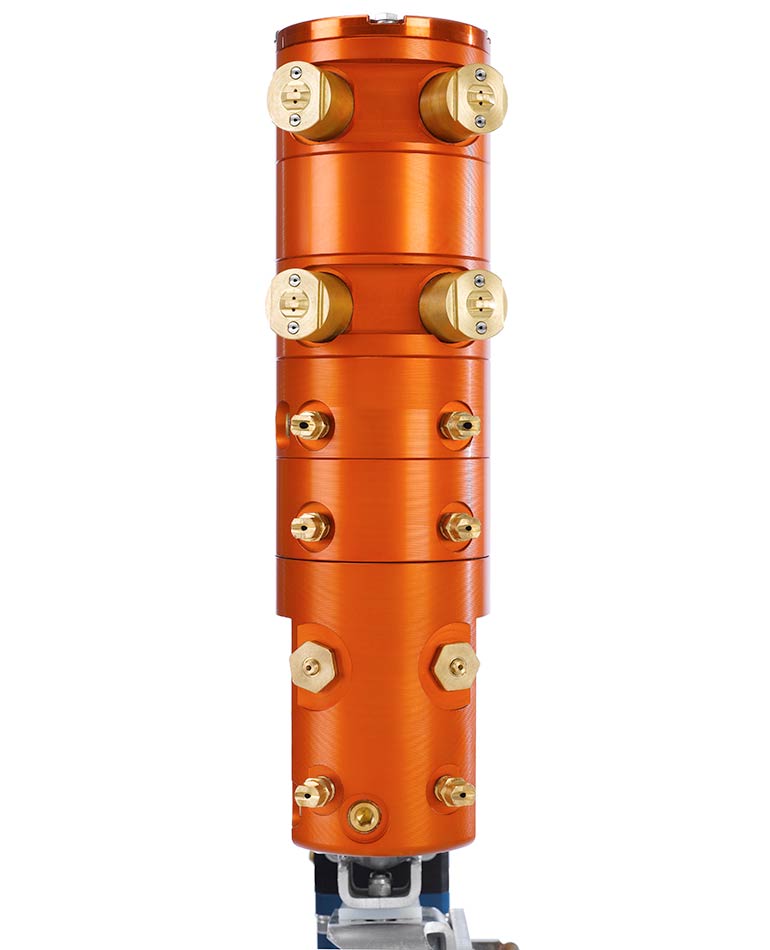

The HKD Impulse R5 is our top-of-the-line high production, energy efficient snowgun with 5 water flows.  The Impulse R5 is unlike any other low-e gun on the market.  It incorporates our patented Variable Airflow Technology to deliver stellar snow quality at high temperatures, and big production with minimal air consumption at cold temperatures. The revolutionary airflow adjustment capability of the Impulse R5 allows for snowmaking performance and efficiencies unattainable by competing products.

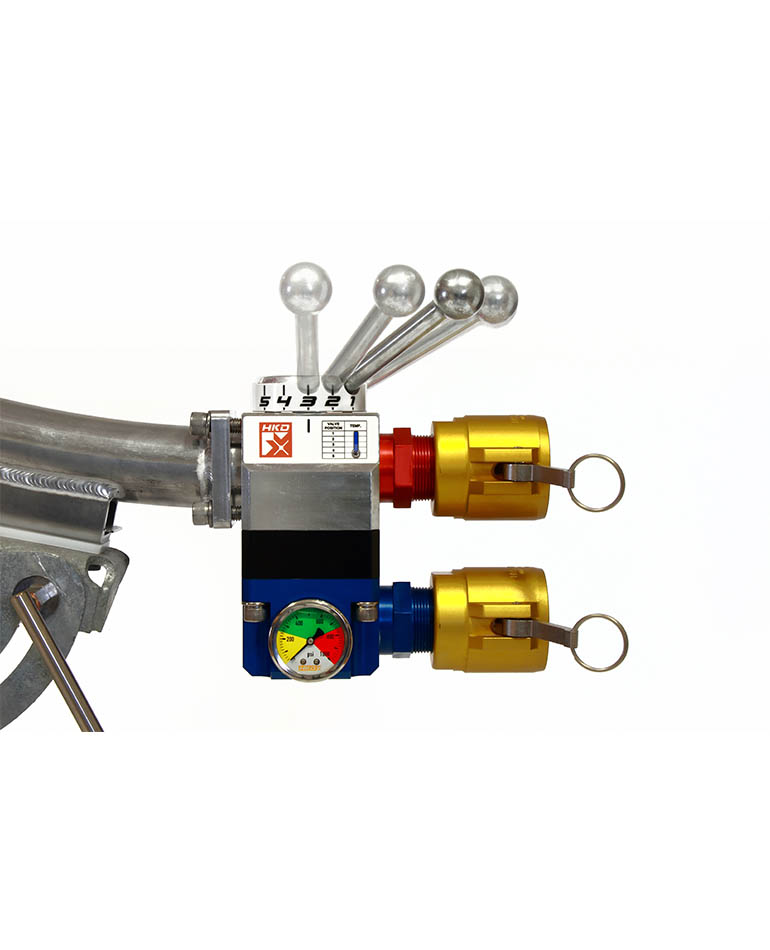

The Impulse R5 also employs our Rotary Valve Technology making the sequential shift from stage-to-stage easy to understand, while simplifying operation and maintenance.

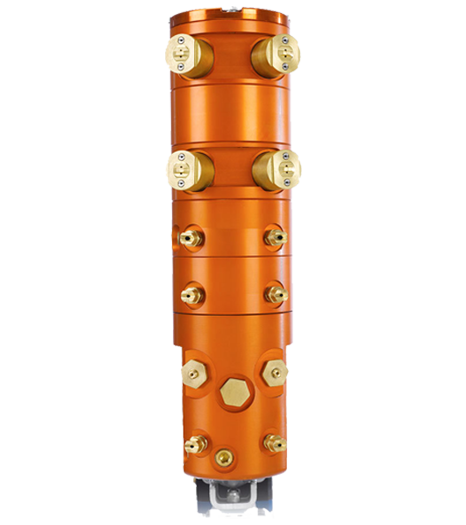

hkd-snow-makers-product-Impulse-R5

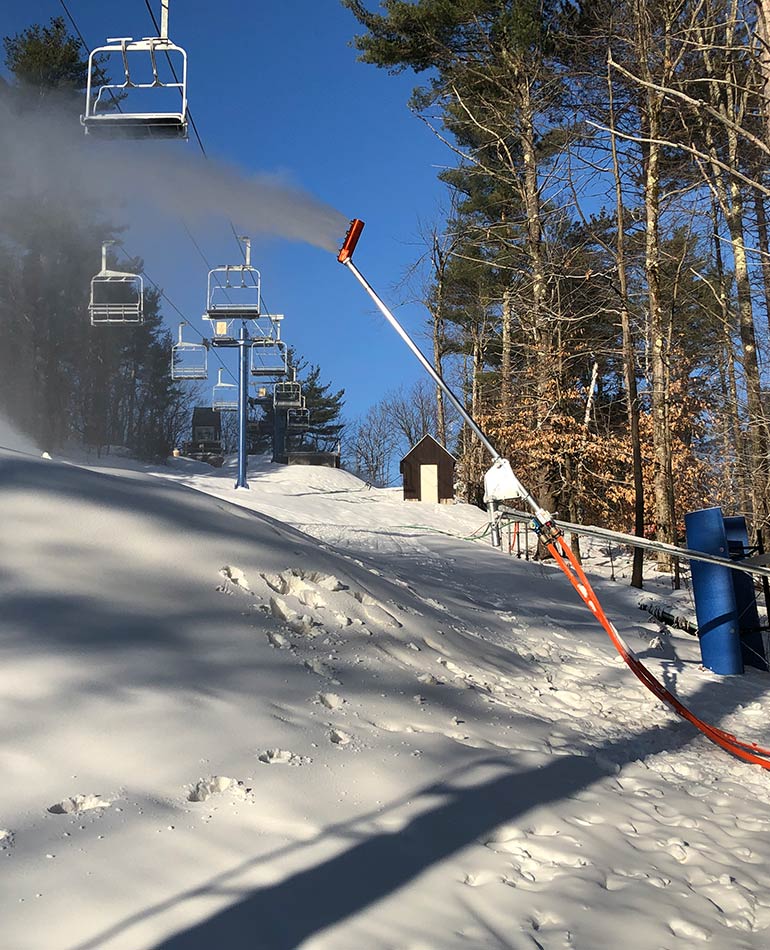

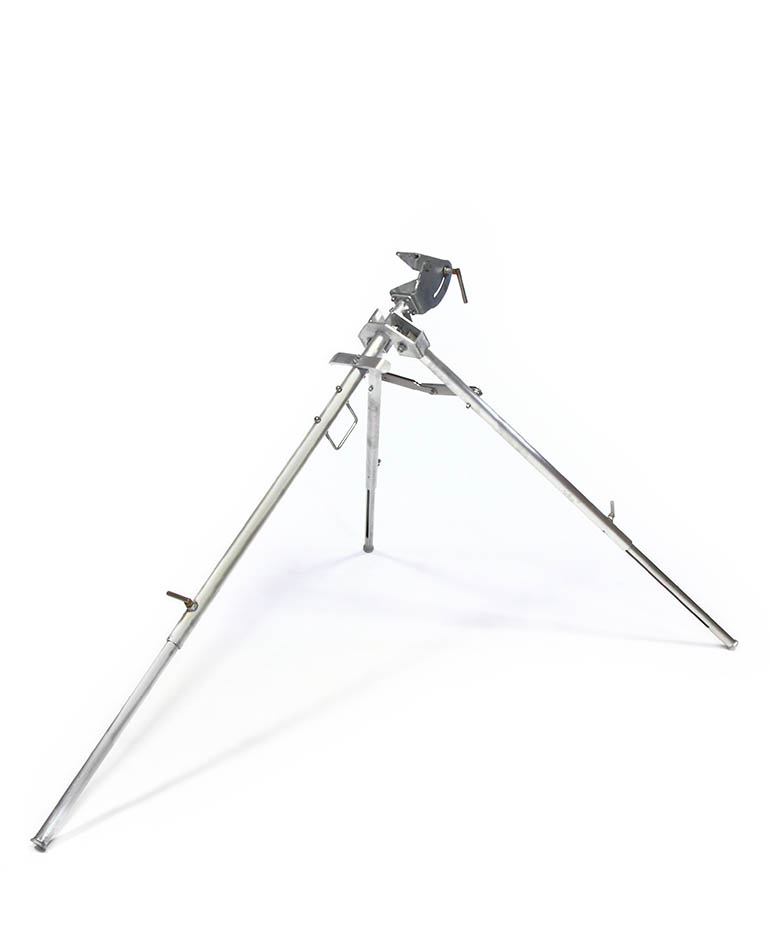

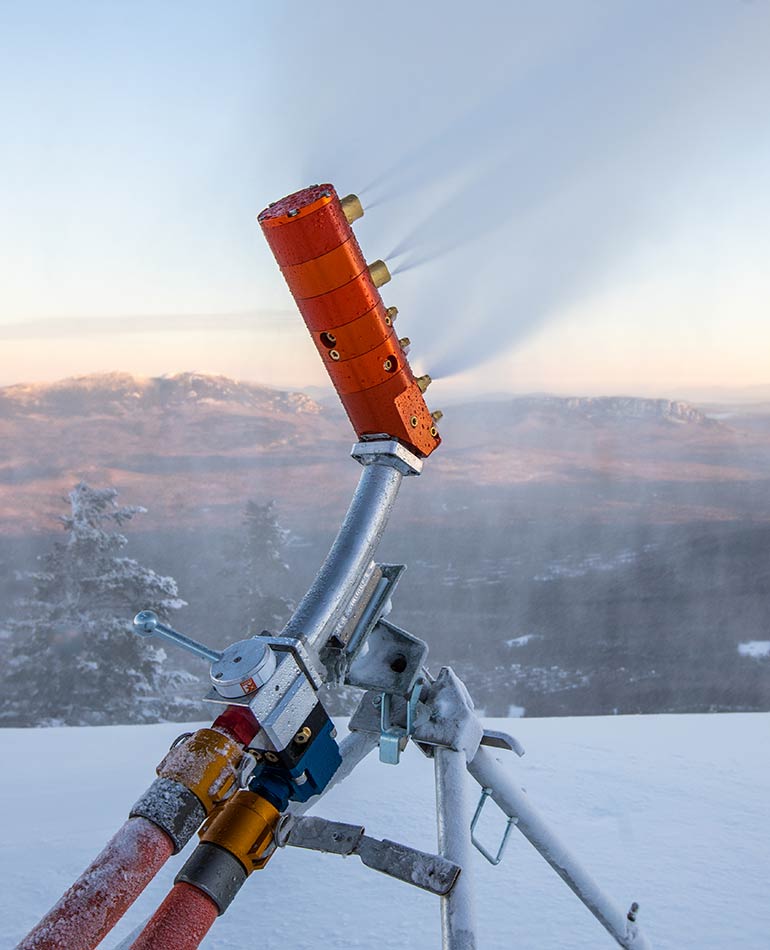

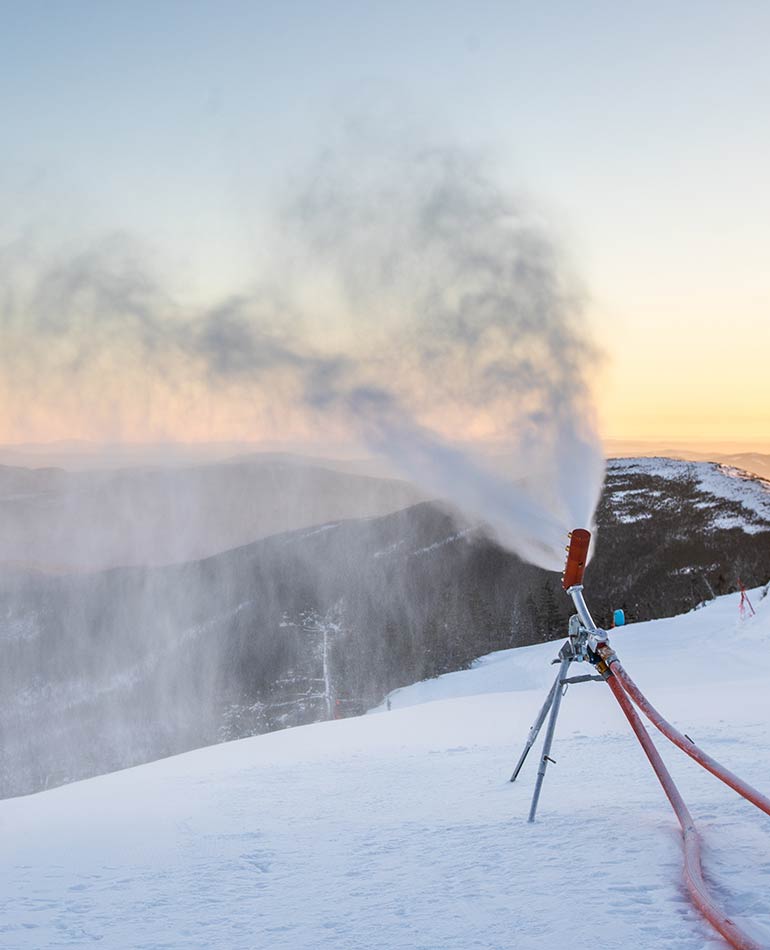

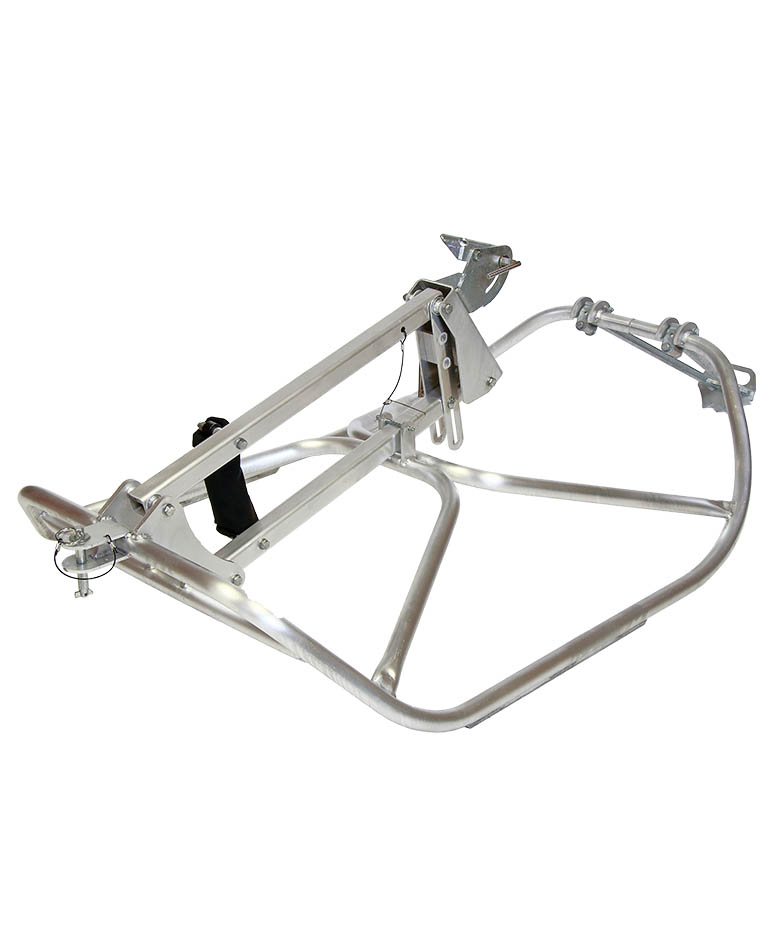

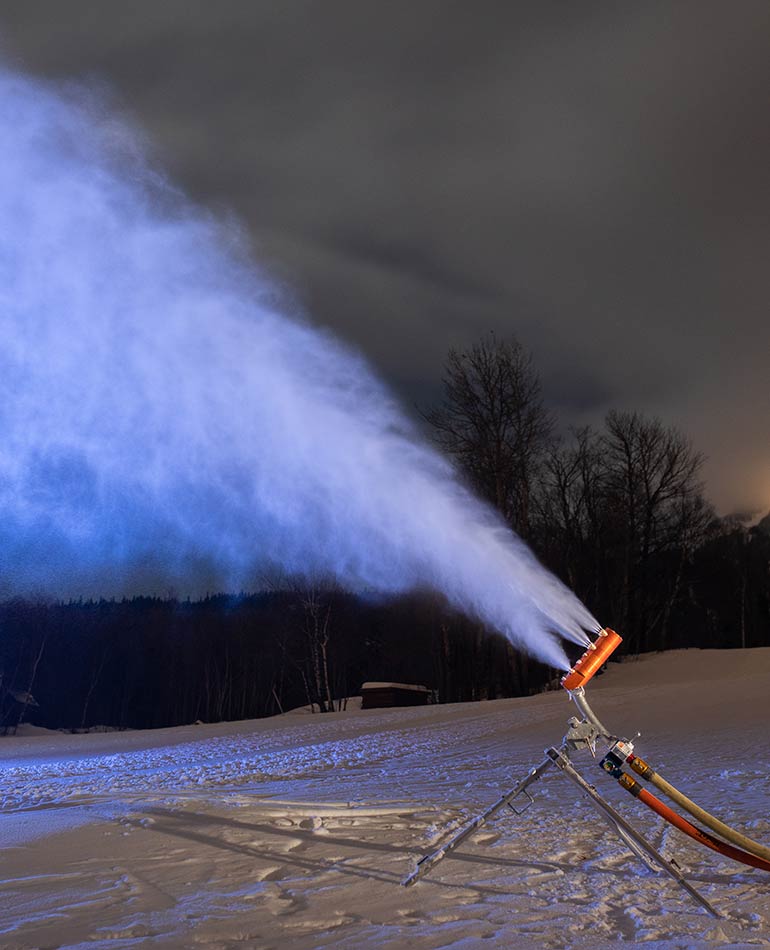

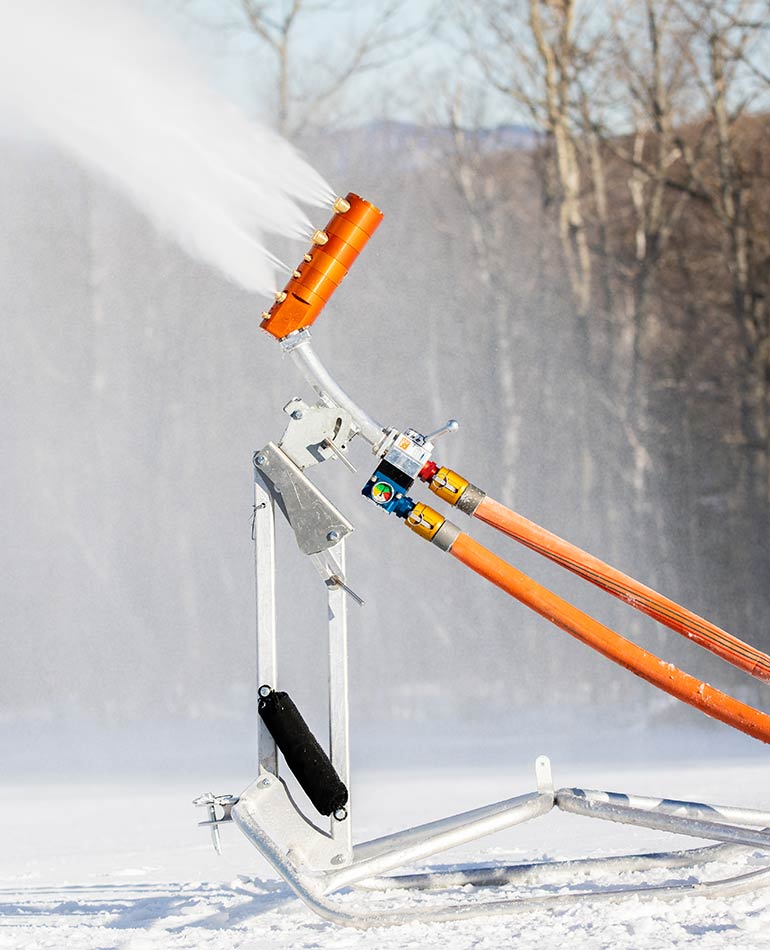

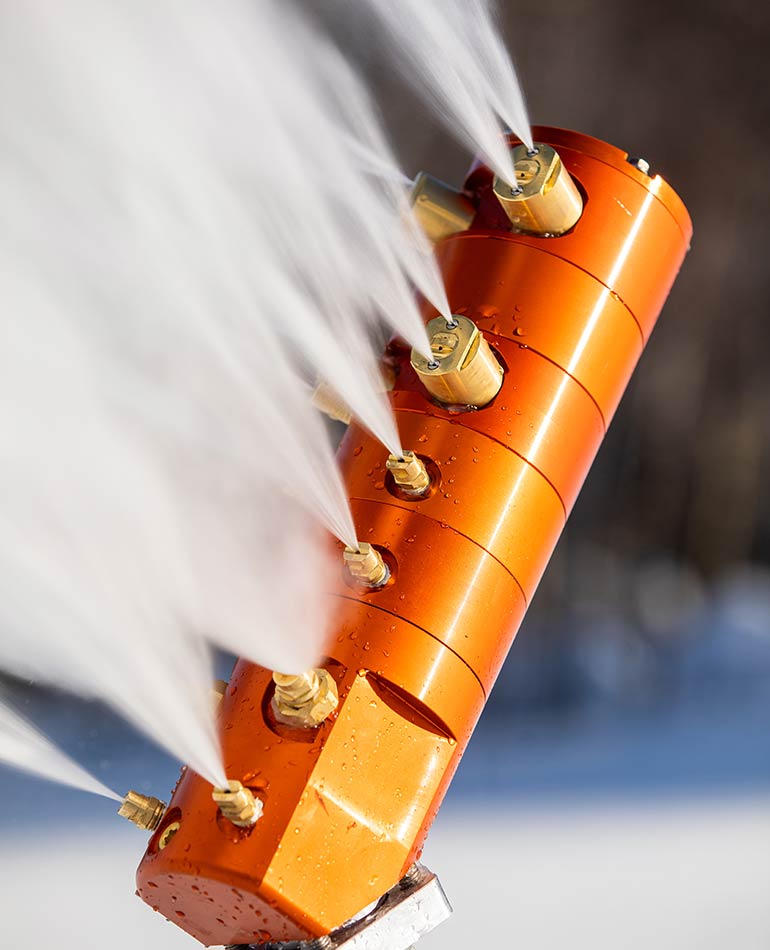

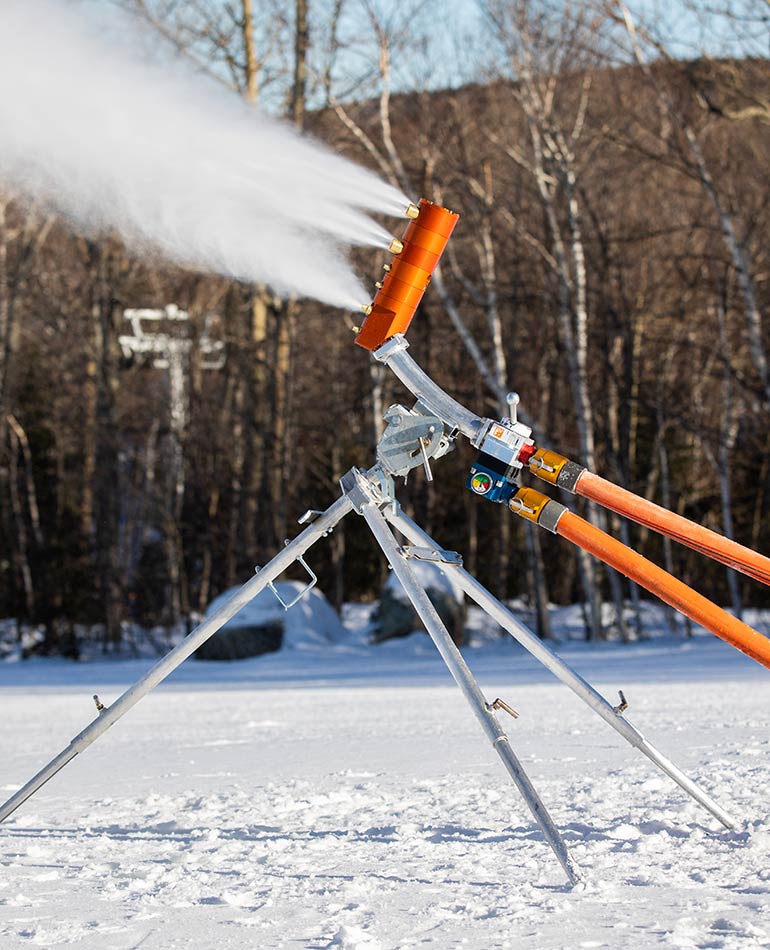

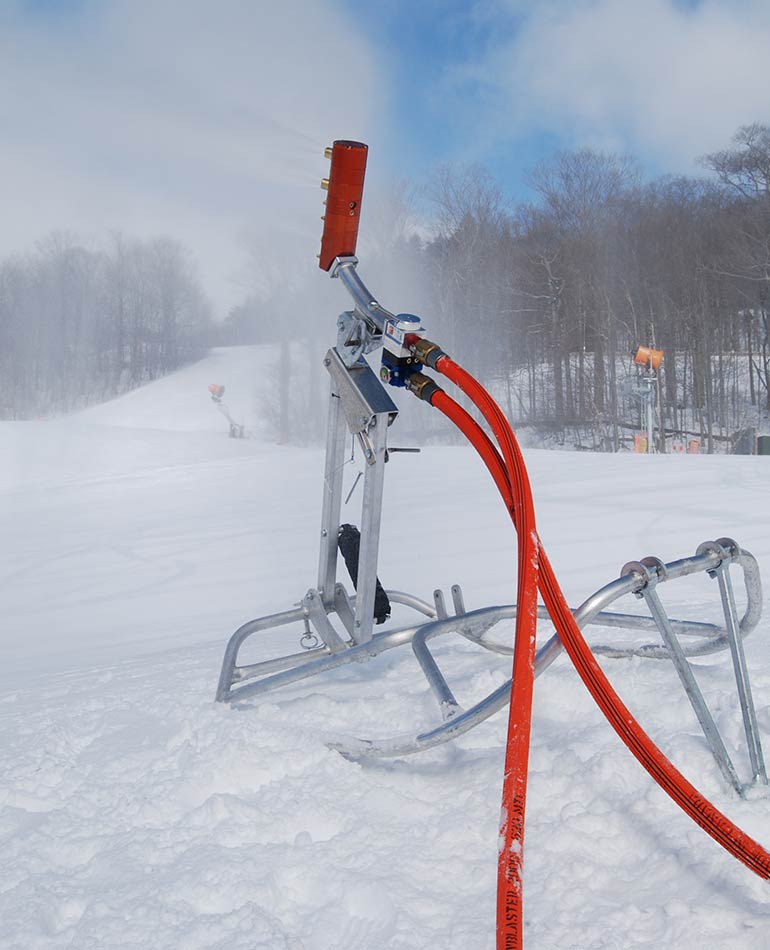

The additional fifth water flow allows the Impulse R5 to operate in an even wider range of temperatures at higher flow rates.  This gun capitalizes on our hybrid nucleation and variable airflow to maximize snow quality and snow production in all temperature windows.  Stages 1 through 3 increase water flow, while stages 4 and 5 further increase water flow and eliminate air flow to the top four nucleators, dropping the CFM by as much as 85%.  The Impulse R5 can be tower mounted or operated on our Viper Sled or Tripod.

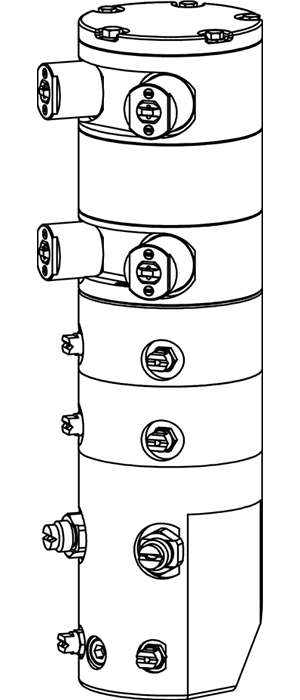

thumb-impulse-r5-line-diagram-opt

PRODUCT SPECS

Height: 2, 10, 20, 30 ft | 3, 6, 9 m
Weight: 50, 80, 120 lbs | 22, 36, 54 kgs
Wet Bulb Start-Up: 28F | -2C
Water Flow: 14 - 80 gpm | 53 - 303 lpm
Minimum Water Pressure: 200 psi | 13 bar
Air Flow: 8 - 48 cfm | 13 - 81 m3/hr
Minimum Air Pressure: 85 psi | 6 bar
Throw: 30 - 125 ft / 9 - 38 m
Water Flow Stages:5 Stage
