EVO 4.0
Fans
Lower Energy Cost. Higher Snow Production.
Engineered to maximize output per kW, the EVO 4.0 improves efficiency, extends operating windows, and reduces total cost per acre-foot.

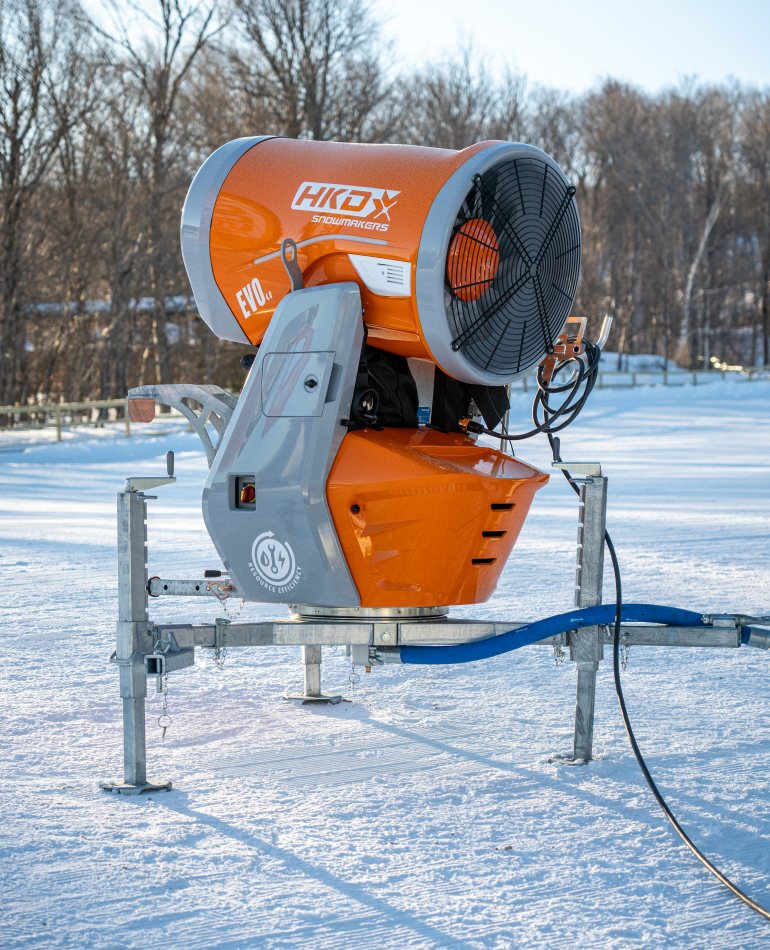

The EVO 4.0 is a highly efficient and versatile fan gun designed to deliver reliable snowmaking performance with low energy consumption and simplified operation. Built on proven technology, it provides consistent snow quality across a wide range of conditions while minimizing operating costs.
With optimized aerodynamics, reduced fan speed, and integrated thermal management, the EVO 4.0 ensures quiet operation, improved efficiency, and dependable performance in demanding environments.
Key Features & Benefits
- High output, low energy demand – up to 127 US gpm (8 l/s) with just 19 HP (14.2 kW) total input power, delivering efficient production with low energy consumption.

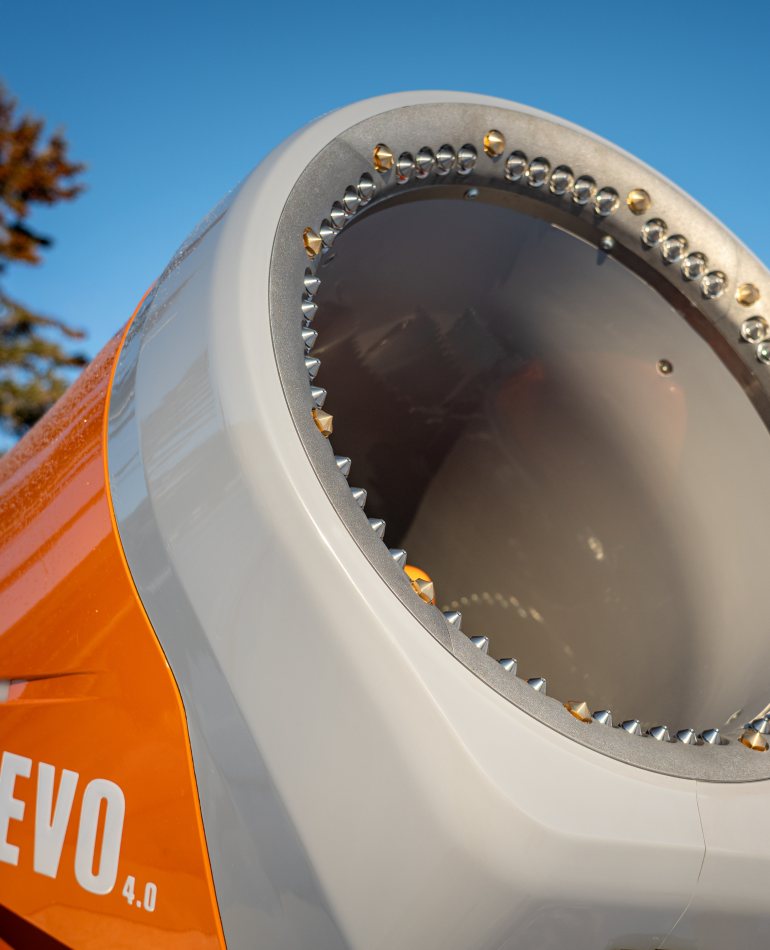

- Performance in marginal conditions – an integrated heat exchanger in the nozzle ring supports consistent snow quality and efficient operation across varying temperatures.

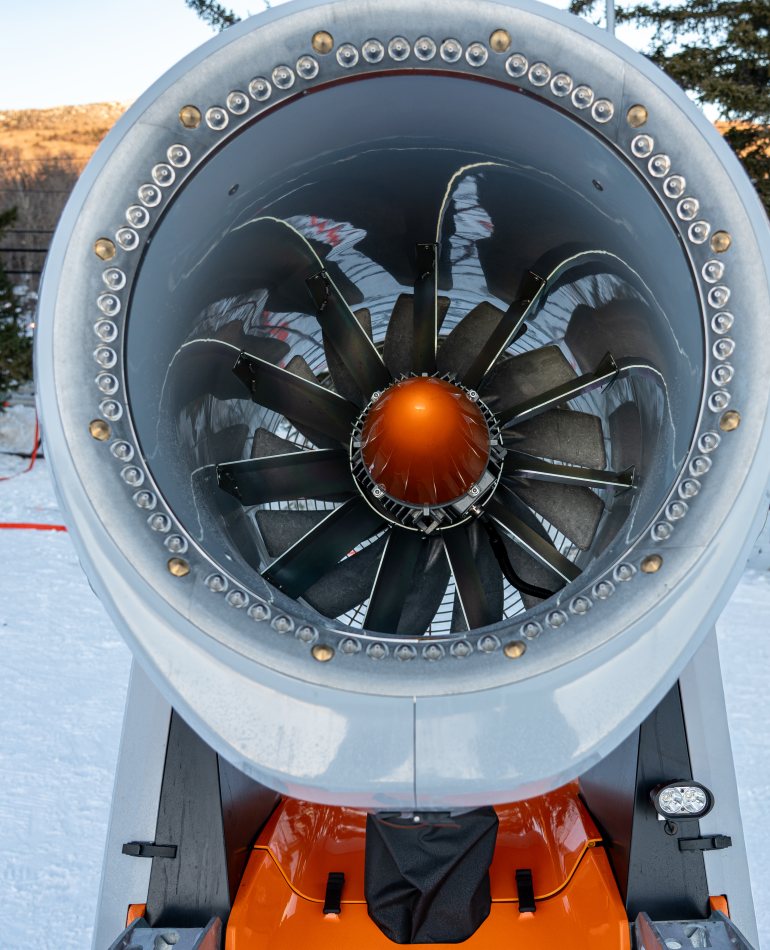

- Optimized airflow and quiet operation – reduced fan speed and improved aerodynamics lower noise levels while maintaining strong throw and performance.
- Integrated thermal management – cools compressed air and regulates nozzle ring temperature at the same time, improving efficiency and reliability.

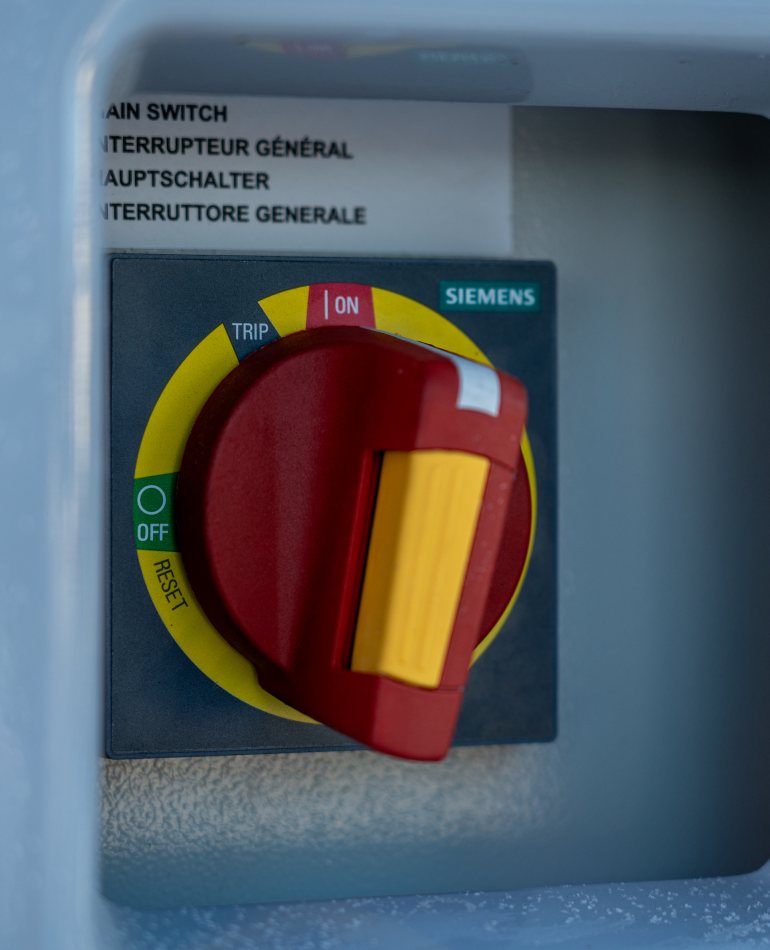

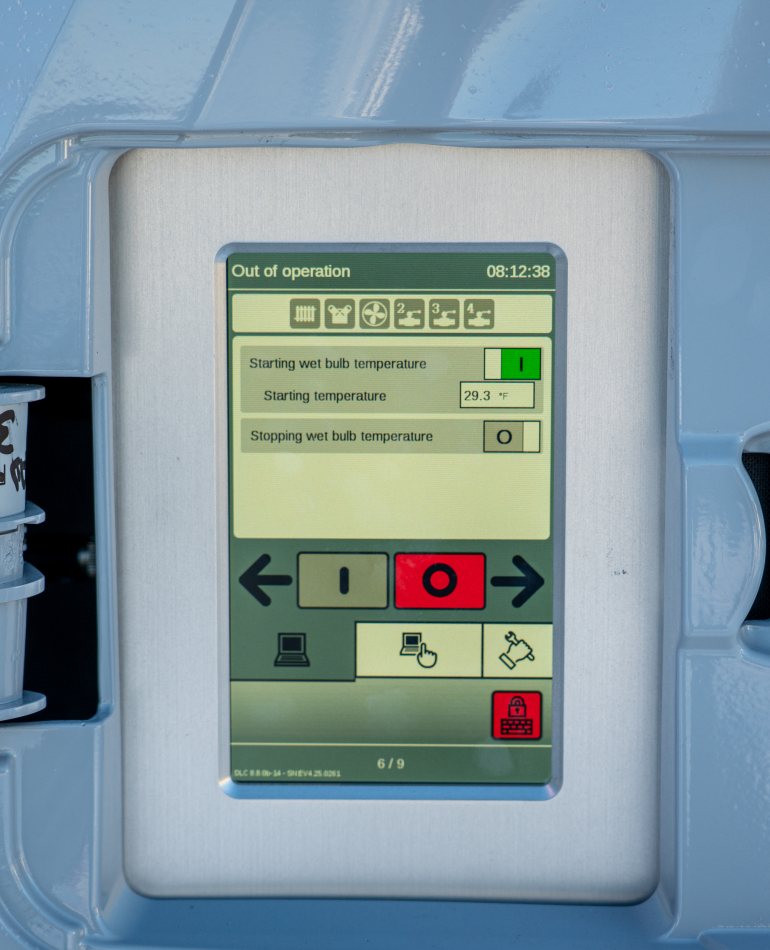

- Advanced controls and electronics – an expanded control cabinet with new functions and intuitive operation for consistent, automated performance.

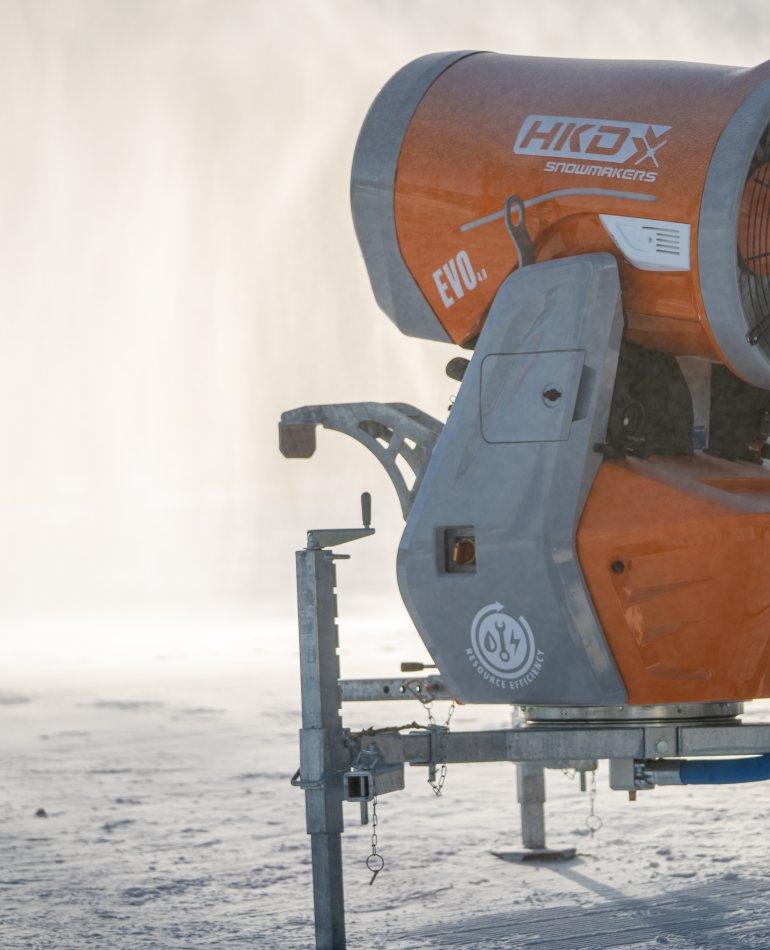

- Lightweight and easy handling – compact design and reduced weight enable simple transport, positioning, and installation in the field.
Built for Operational Efficiency
The EVO 4.0 combines low energy consumption, quiet operation, and reliable performance, helping operators reduce cost per acre-foot while maintaining consistent snow production throughout the season.
PRODUCT SPECS
| Water Pressure: | 116 - 725 psi | 8 - 50 bar |
|---|---|
| Maximum Water Flow: | 127 US gpm | 8 l/s |
| Maximum Snow Production: | 47 cfm | 80 m³/h |
| Throwing Range: | 200 ft | 60 m |
| Voltage: | 480 V |
| Frequency: | 60 Hz |

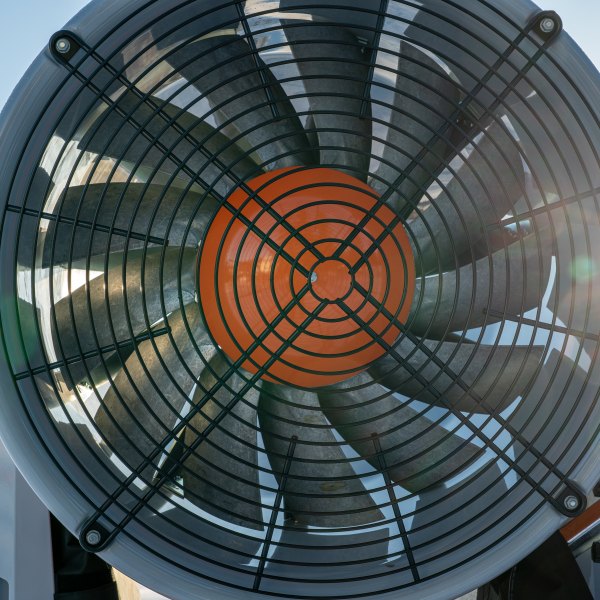

| Fan: | 12.3 HP | 9.2 kW |
| Compressor: | 5.4 HP | 4 kW |
| Heating, Lights and Small Consumers: | 1 kW |
| Total Input Power: | 19 HP | 14.2 kW |
| Connection Plug: | 30 A |
| Nucleators: | 12 |

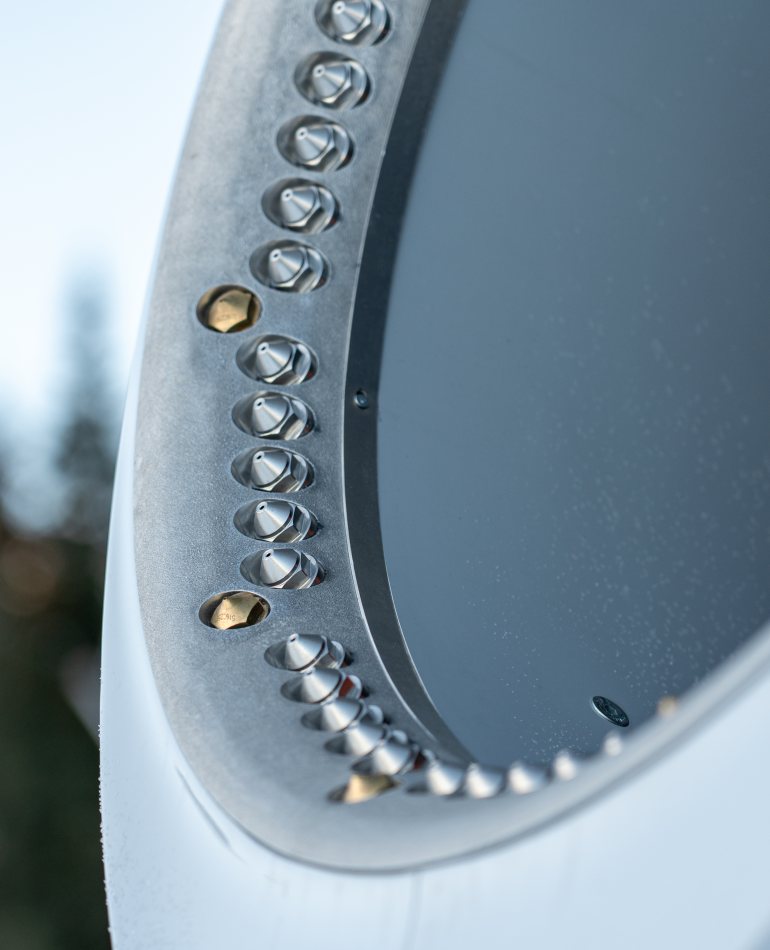

| Water Nozzles: | 52 |
| Swinging Range: | 360° |
| Automatic Swing: | -175° to +175° |
| Barrel Inclination: | 0° to 45° |
| Water Connection: | 2 in. F camlock |
| Water Filter: | 60 US-mesh | 250 µm |
| Chassis Options: | AMK, ETK, ATK2, ATK US, ASK4 |
Total input power measured at a wet bulb temperature of 14°F (-10°C). Other voltages available on request. Height, length, width and weight vary by chassis — see the full specification sheet.
