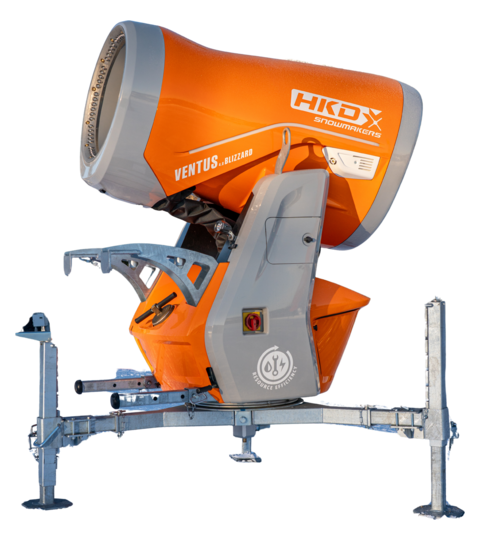

VENTUS 4.0 BLIZZARD
Fans
Ventus 4.0 BLIZZARD is the optimized new edition of the revolutionary Ventus 4.0, which marked the new era of the 4.0 line when it was launched in 2017 and established new market standards.
Like its predecessor, the product impresses with an unbeatable ratio between consumption and performance, as well as ease of maintenance and servicing. Ventus 4.0 BLIZZARD excels with even more sophisticated technology, revised design and improved blower shape, making it the highest quality fan gun in its class.
Water flow rate of up to 143 US gpm (9 l/s) with only 26.8 HP (20 kW) input power
- Increase of switching stages to 15 to maximize efficiency

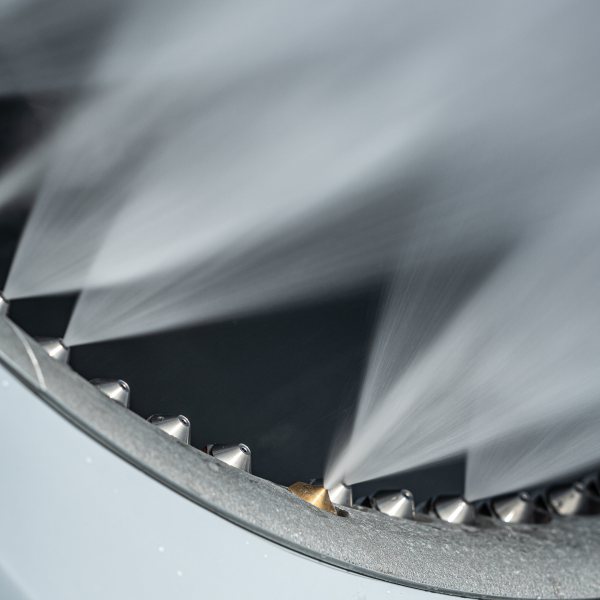

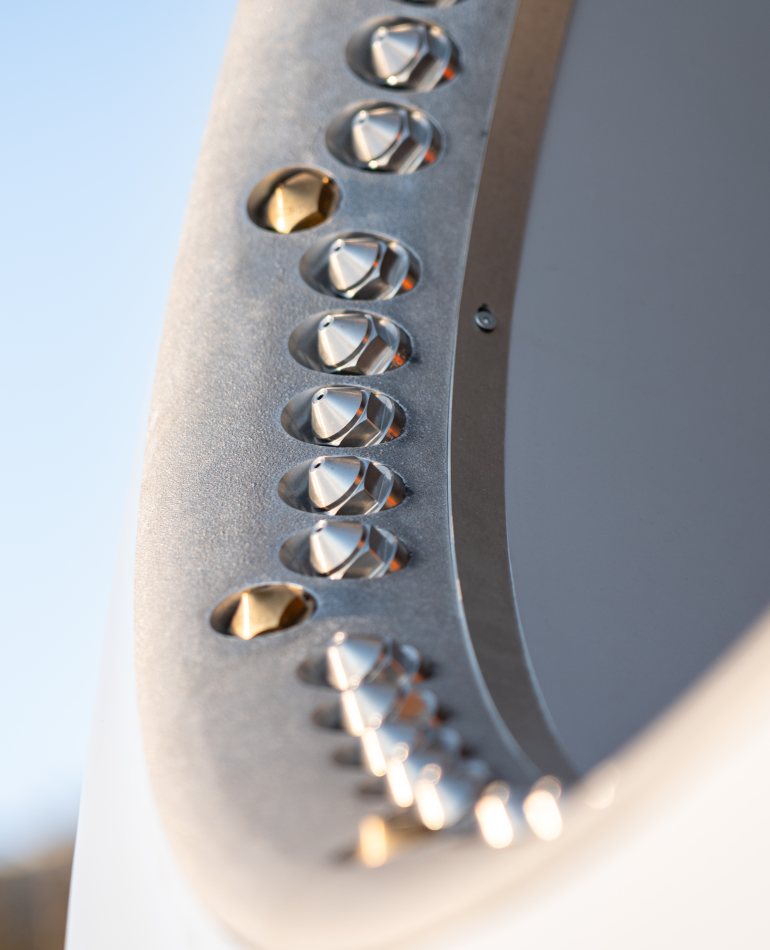

- Optimized cast aluminum nozzle ring that requires less heating power
- Thanks to the integrated heat exchanger, the nozzle ring is heated and the air of the compressor is cooled at the same time
- Control DLC 4.0 according to highest industry standards
PRODUCT SPECS
| Water Pressure: | 116 - 725 psi | 8 - 50 bar |
|---|---|
| Maximum Water Flow: | 143 US gpm | 9 l/s |
| Maximum Snow Production: | 53 cfm | 90 m³/h |
| Throwing Range: | 230 ft | 70 m |
| Voltage: | 480 V |
| Frequency: | 60 Hz |
| Fan: | 20.1 HP | 15 kW |
| Compressor: | 5.4 HP | 4 kW |

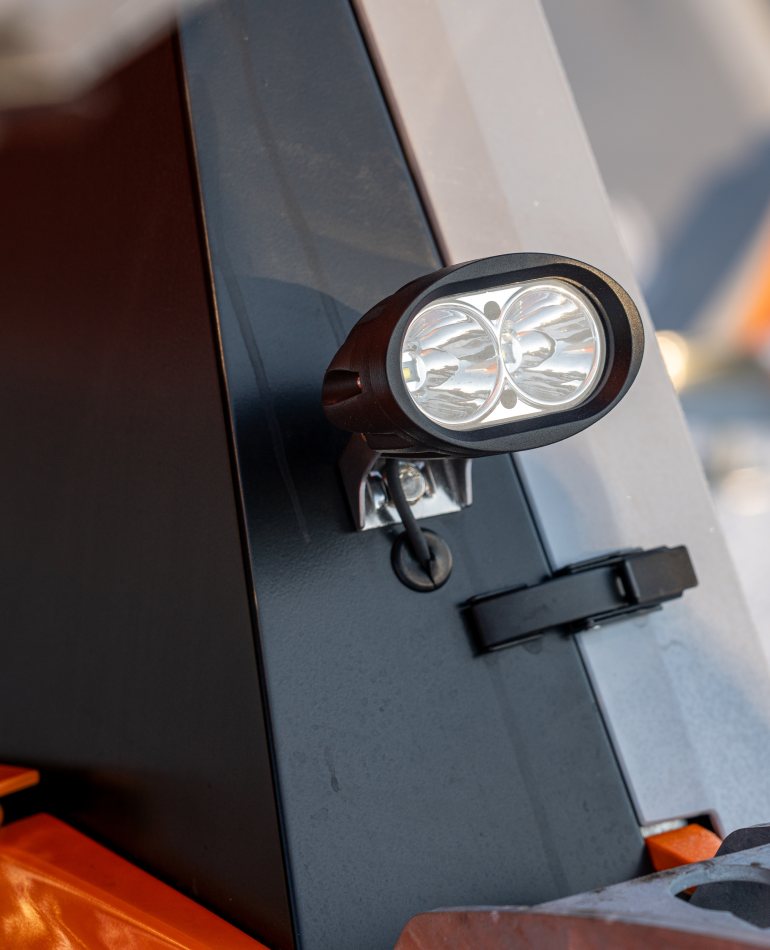

| Heating, Lights and Small Consumers: | 1 kW |
| Total Input Power: | 26.8 HP | 20 kW |
| Connection Plug: | 60 A |
| Nucleators: | 12 |
| Water Nozzles: | 64 |
| Swinging Range: | 360° |
| Automatic Swing: | -175° to +175° |
| Barrel Inclination: | 0° to 45° |
| Water Connection: | 2 in. F camlock |
| Water Filter: | 60 US-mesh | 250 µm |
| Chassis Options: | AMK, ETK, ATK2, ATK US, ASK4 |
Total input power measured at a wet bulb temperature of 14°F (-10°C). Other voltages available on request. Height, length, width and weight vary by chassis — see the full specification sheet.
